Svantek SV 200A 4G Noise Monitoring Station

Svantek SV 200A 4G Noise Monitoring Station

All in One Noise Monitoring Station

Measure and record noise, spectra, audio, meteo


Availability: Purchase

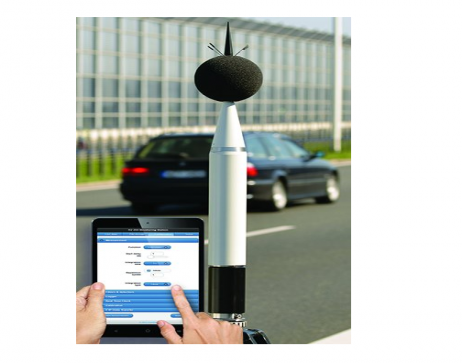

The SV 200A is an all-in-one noise monitoring station which means that the sound level meter has been integrated with a 4G modem and outdoor enclosure. With four additional microphones the SV200A is able to detect the direction of the dominant noise source. The monitoring station has been equipped with a various options for connection including 4G, LAN, Wireless LAN and Bluetooth®.

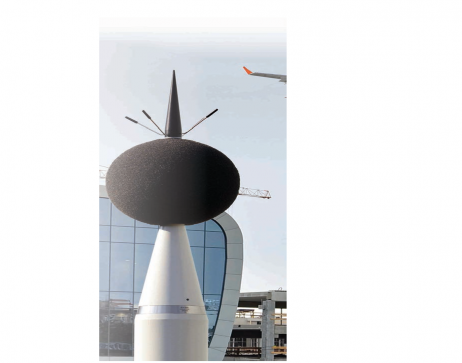

Four additional microphones located on sides of the housing use the sound intensity technique to detect the DIRECTION of a DOMINANT NOISE SOURCE both in the vertical and horizontal axes. The Leq distribution in angle sectors is saved as the time-history and can be used for data filtering and reporting.

Do contact us now for more information - ☎ (65) 6296 8012 | ✉ sales@aisys.com.sg

  • ‘All in one’ design for portable, mobile and permanent noise monitoring installations
  • Real-time 1/1 or 1/3 octave analysis
  • Audio events recording
  • Rugged housing protecting the system against harsh environmental conditions (IP66)
  • Integrated electrostatic actuator for full system verification
  • Class 1 according to IEC 61672
  • Integrated high speed 3G or Wi-Fi modem
  • Automatic time synchronization
  • Large windscreen against high-speed wind
  • Intelligent heater protecting microphone against humidity
  • Live audio & data streaming capabilities
  • Low power consumption, integrated Li-Ion battery and direct connection for solar panels
  • Highly reliable and secure data push and configuration pull communication protocol
  • Both, server and web based system configuration
  • Community & airport characteristics available simultaneously
  • Part Number:
