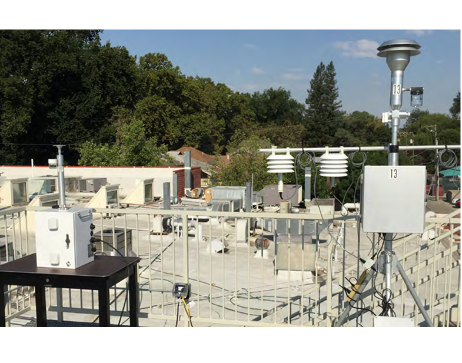

From TSI, the world leader in particle measurements, the Environmental DustTrak™ Aerosol Monitor is a real-time supplement to Federal Reference Method (FRM) data collection that can be deployed remotely in under an hour. Integrated early detection features enable timely mitigation of sources contributing to increased air pollution exposure levels. The Environmental DustTrak Monitor is built upon proven DustTrak technology that thousands of people use every day.

• Environmental Consultants and Engineering Firms

Obtain real-time, near-reference data for environmental monitoring. This instrument is compatible with a variety of sensors to detect volatile organic compounds (VOCs), gases, wind speed and more.

• Construction

Measure dust while minimizing downtime. The Environmental DustTrak can help keep your project on track. The instrument is field serviceable, contains replaceable photometers and has a long pump life. Monitor your project 24 hours a day, 7 days a week, 365 days a year.

• Emergency Responders

Monitor air pollution after wildfires and other environmental disasters, with real-time alerts sent to your mobile device. The Environmental DustTrak can provide actionable data, which can assist decision makers in deploying personnel and resources.

FEATURES AND BENEFITS

• Simultaneously measure size-segregated mass fraction concentrations corresponding to PM 1 , PM 2.5 Respirable, PM 10 and total PM size fractions
• Easy to use custom alarm settings for alerts anytime, anywhere
• Perform in-line gravimetric analysis for custom reference calibrations
• Aerosol concentration range 0.001 to 150 mg/m 3
• Environmentally protected and tamper-proof with environmental enclosure

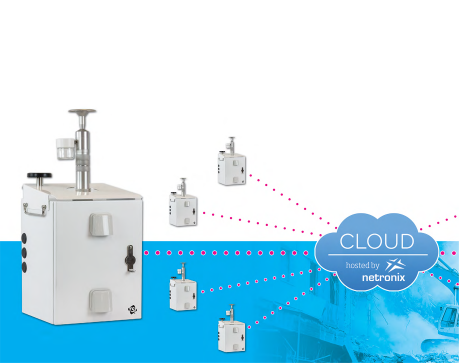

• Cloud Data Management System  for efficient remote monitoring anywhere

• TSI Environmental DustTrak Aerosol Monitor
• DustTrak_Environmental_Monitor_Manual_6012056E-web

Model Type

Model EDTPM 10

• Measured Mass Fraction   : PM10
• Concentration Range   : 0-400 mg/m3

Model EDTPPM2.5

• Measured Mass Fraction   : PM2.5
• Concentration Range   : 0-400 mg/m3

Model EDTDRX

• Measured Mass Fraction  : Simultaneous PMTotal, PM10,PM2.5 and PM1.0
• Concentration Range  : 0-150 mg/m3

Base Model Contents

• Environmental DustTrak Photometer
• Environmental DustTrak Enclosure
• Netronix Thiamis 1000 Quad-Band 3G/GPRS Modem, including WiFi and Bluetooth
• Omni-directional Inlet with Water Trap
• Impactor (not necessary for EDTDRX)

Optional Accessories

• Heated Inlet Sample Conditioner
• Rechargeable Battery System,
• AC Power or Solar Power System
• Pole Mount Kit
• Solar Shield
• Metrology Sensors

Specification

• Resolution  :  ±0.1% of reading or 0.001 mg/m3, whichever is greater
• Zero Stability  :  ±0.002 mg/m3 per 24 hours at 10 sec time constant
• Sample Flow Rate  :  3.0 L/min (±5% of factory set point, internal flow controlled)
• Detection Method  :  Light scattering laser photometer; 90° off-axis detector
• Gravimetric Sampling  :  Removable 37 mm cartridge (filter media not supplied)
• Power Requirements  :  Requires AC mains, rechargeable batteries or solar power system
• Weight  :  30 lbs. (13.6 kg)
• Mounting  :  Wall and pole mount
• Environmental Enclosure  :  Lockable, enclosure; 16 x 12 x 12.25 inches (HWD),
• (411 x 305 x 311 mm)
• Sample Inlet  :  Omni-directional inlet with water trap

Operating Environment

• 32° to 120°F (0° to 50°C) standard; extended temperature range capability of -4° to 120° F (-20° to 50° C) available with optional enclosure heater2; 0 to 100% RH

SMS Text Messaging and Email Alert Capability

• User programmable from Environet software

Communications

• Wireless: Cloud service capability via Netronix Thiamis 1000

• Quad-Band 3G/GPRS Modem, including WiFi and Bluetooth
• Wired: USB (host and device) and Ethernet

Data Logging

• (i)   Via Thiamis 1000: 1 Hz data rate: user selectable reporting interval from 1 minute to 24 hours (average reading). 2 GBof on-board memory, expandable to 32 GB. Stored data accessible using Environet software.
• (ii)   Via internal manual mode: User selectable, 1 second to 1 hour log interval. 5 MB of on-board memory (>60,000 data points), 45 days at 1 minute logging interval. Internally stored data accessible using TrakProSoftware (supplied).
