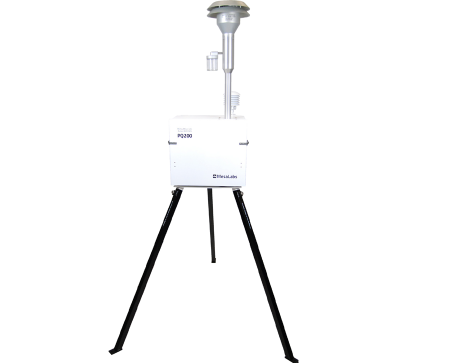

PQ200 Ambient Air Particulate Sampler

PQ200 Ambient Air Particulate Sampler

The BGI PQ200 FRM Sampler uses BGI pioneering technology to meet and exceed the requirements for ambient particulate sampling dictated by the U.S Environmental Protection Agency. This includes the design of reliable PM10, PM2.5 and PM1 Inlets, volumetric sample flow rate control, data logging and software for report and data processing.

  • Portable sampler for TSP, PM10, PM2.5, PM Coarse, and PM1
  • EPA Reference Method for PM10 sampling (Designation No. RFPS-1298-125)
  • EPA PM2.5 Reference Method sampler (Designation No. RFPS-0498-116)
  • EPA PM Coarse approved sampler
  • Only designated reference sampler capable of a 24 hour run on internal built-in 12 volt battery. Internal battery provides power during AC power outages meaning you never have sample interruptions.
  • Ordered by EPA as the PEP Audit Reference Method
  • Only designated Reference Method sampler with solar power option
  • Optional solar panel can allow for indefinite operation without charging or connection to an AC power source

Youtube video (3:14) from BGI on PQ200 Quick Start Guide



Features

  • Single channel design for maximum reliability and portability
  • Friendly operator interface and easy data collection and downloading
  • Includes built-in 12-volt DC battery power system charger (U.L. approved), allows operation for up to 30 hours
  • Advanced flow control system

General Specification

  • Particle Size: PM10, PM2.5, PM1, TSP
  • Flow Range: 10-20 LPM
  • US EPA Designation: EPA RFPS-1298-125 FRM for PM10, EPA RFPS-0498-116 FRM for PM2.5, EPA RFPS-1208-173 FRM for PM10-2.5
  • Sampling Interval: 24-Hour Sampling

Flow Control Specification

  • Pump: Dual Diaphragm Vacuum Pump
  • Range: 10-20 LPM
  • Accuracy: ±2%

Environmental Specification

  • Operating Temperature: -30 to 45° C
  • Ambient/Filter Temperature Sensor Resolution: 0.1° C
  • Temperature Sensors Accuracy: ±2%
  • Barometric Pressure Sensor: 600 to 800 mmHg

Electrical & Communication Specification

  • Internal Battery: 12V 12Ah short circuit protected
  • Optional: Solar
  • Data Output: RS232 Connection
  • Interface: Push-button
  • Language Options: English, Spanish
  • Part Number:
