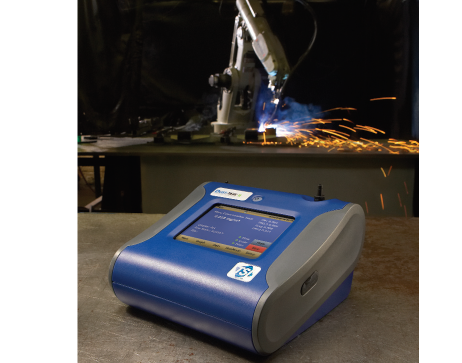

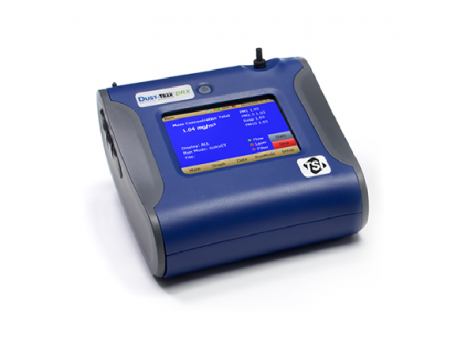

TSI DustTrak DRX Aerosol Monitor 8533

Real-time dust monitoring takes a giant leap forward!! Only the DustTrak™ DRX Aerosol Monitor 8533 can simultaneously measure both mass and size fraction - no other monitor can do both.  The DustTrak DRX desktop monitor is a battery operated, data-logging, light-scattering laser photometers that gives you real-time aerosol mass readings. It uses a sheath air system that isolates the aerosol in the optics chamber to keep the optics clean for improved reliability and low maintenance.

It is suitable for clean office settings as well as harsh industrial workplaces, construction and environmental sites and other outdoor applications. The DustTrak DRX monitor measures aerosol contaminants such as dust, smoke, fumes and mists.

Features and Benefits

• Simultaneously measure size-segregated mass fraction concentrations corresponding to PM 1 , PM 2.5 , Respirable, PM 10 and Total PM size fractions
• STEL alarm setpoint
• Automatic zeroing (with optional zero module) minimizes the effect of zero drift
• Perform in-line gravimetric analysis for custom reference calibrations
• Manual and programmable data logging functions
• Aerosol concentration range 0.001 to 150 mg/m 3
• Environmental protected and tamper-proof with Environmental Enclosure
• Cloud Data Management System for efficient remote monitoring
• Heated Inlet Sample Conditioner to reduce humidity effects
• Desktop unit

Applications

• Industrial/occupational hygiene surveys
• Indoor air quality investigations
• Outdoor environmental monitoring
• Baseline trending and screening
• Engineering control evaluations
• Remote monitoring
• Process monitoring
• Emissions monitoring
• Aerosol research studies

• TSI DustTrak DRX Aerosol Monitor 8533datasheet
• TSI Dust Trak DRX Aerosol Monitor 8533brochure

Specifications

• Sensor Type  :  90° light scattering
• Particle Size Range  :  0.1 to 15 μm
• Aerosol Concentration Range  :  0.001 to 150 mg/m3
• Display  :  Size Segregated Mass Fractions for PM1, PM2.5, Respirable,
• PM10 and Total. All displayed
• Resolution  :  ±0.1% of reading or 0.001 mg/m3, whichever is greater
• Zero Stability  :  ±0.002 mg/m3 per 24 hours at 10 sec time constant
• Flow Rate  :  3.0 L/min
• Flow Accuracy  :  ±5% of factory set point, internal flow controlled
• Temperature Coefficient  :  +0.001 mg/m3 per °C
• Operational Temp  :  32 to 120°F (0 to 50°C)
• Storage Temp  :  -4 to 140°F (-20 to 60°C)
• Operational Humidity  :  0 to 95% RH, non-condensing
• Time Constant  :  User adjustable, 1 to 60 seconds
• Data Logging  :  5 MB of on-board memory (>60,000 data points)
• 45 days at 1 minute logging interval
• Log Interval  :  User adjustable, 1 second to 1 hour
• Physical Size (H x W x D)  :  5.3 x 8.5 x 8.8 in.(13.5 x 21.6 x 22.4 cm)
• Weight  :  Desktop 3.5 lb (1.6 kg),4.5 lb (2.0 kg) – 1 battery,
• 5.5 lb (2.5 kg) – 2 batteries
• Communications  :  USB (host and device) and Ethernet. Stored data accessible
• using flash memory drive
• Power-AC  :  Switching AC power adapter with universal line cord
• included,115–240 VAC
• Analog Out  :  User selectable output, 0 to 5 V or 4 to 20 mA.
• User selectable scaling range
• Alarm Out  :  Relay or audible buzzer
• Relay
• Non-latching MOSFET switch
• + User selectable set point
• + –5% deadband
• + Connector 4-pin,
• Mini-DIN connectors
• Screen  :  5.7 in. VGA color touchscreen
• Gravimetric Sampling  :  Removable 37 mm cartridge (user supplied)
• CE Rating  :  Immunity EN61236-1:2006
• Emissions EN61236-1:2006
