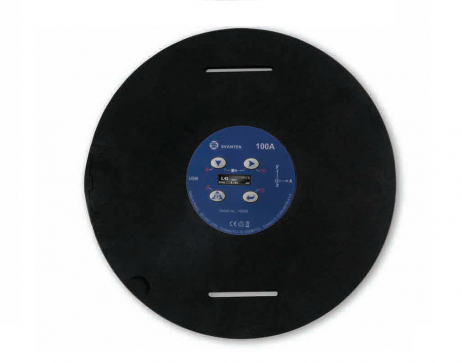

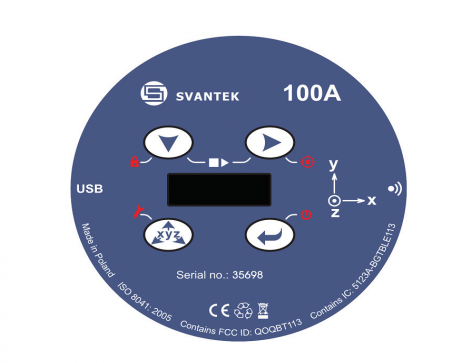

The new SV100A is a wireless whole-body vibration exposure meter suitable for whole-body measurements in accordance with ISO 2631-1. Suitable for taking measurements both on the seat and seat-back, the device uses the very latest technology and is ease of use. The instrument is equipped with 4 push buttons and a small OLED display that allows basic configuration in the field.

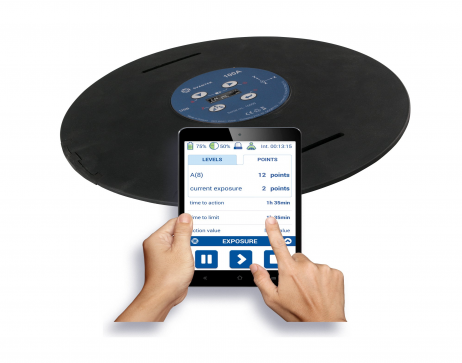

The Bluetooth interface enables current results to be previewed on a smartphone or tablet using our Assistant Android application.

The smartphone app can also signal an alarm when set vibration limits are exceeded. Our advanced technology enables the automatic detection of an operator in the workplace. By default the instrument is configured for seat measurements (in a horizontal direction) but this setting can be easily changed.

When changing the orientation of the SV 100A to the vertical, the directions of axes and weighting filters are automatically adjusted in accordance to ISO 2631-1.

The device is equipped with both RMS and RMQ detectors which allows the calculation of Daily Vibration Exposure A(8) based on RMS and VDV simultaneously. All measurement results are stored in a large 8GB internal memory which allows continuous recording over long periods. The standard 2.0 USB interface allows fast data download and is also used for battery recharging.

For advanced users, the SV 100A offers frequency analysis in 1/1 or 1/3 octaves and time signal recording to wave format in accordance to ISO 2631-5 that is compatible with popular recalculation software.

The SV 100A is fully configurable with our Supervisor software. It can quickly and easily be setup for all the weighting filters required by ISO standards for the estimation of the effects of vibration on health, comfort, perception and motion sickness. The dedicated Whole-Body Vibration Exposure panel within Supervisor software makes reporting extremely easy.

• Svantek_SV_100A_Whole-body_Vibration_Exposure_Meter_datasheet

Features

• Whole-body Vibration Exposure Meter complying to ISO 8041
• Wireless instrument with rechargeable battery
• Unattended measurement of seat-pad or seat-back vibration
• Bluetooth communication
• Auto-detection of the operator
• Weighting filters complying to ISO 2631-1
• Calculation of A(8) Daily Exposure
• Results both in ms-2 and exposure points
• Large 8 GB memory
• USB 2.0 interface
• OLED color display and push-buttons
• Operational time > 24 hours
• Easy in use predefined setups
• Extremely compact, light weight and robust case

Specification

• Standards  :  ISO 8041:2005, ISO 2631-1, 2 & 5
• Meter Mode  :  RMS, VDV, MTVV or Max, Peak, Peak-Peak, Vector, A(8) Daily Dose, ELV, EAV. Simultaneous measurement in three channels
• Filters  :  Wd, Wk, Wm, Wb (ISO 2631) and corresponding Band Limiting filters; Wf for motion sickness measurements according to ISO2631(option)
• RMS & RMQ Detectors  :  Digital true RMS & RMQ detectors with Peak detection, resolution 0.1 dB
• Measurement Range  :  0.01 ms-2 RMS ÷ 157 ms-2 PEAK
• Frequency Range  :  0.1 Hz ÷ 180 Hz
• Data Logger  :  Time-history data including meter mode results and spectra
• Time-Domain Recording  :   Simultaneous 3-channel time-domain signal recording (option)
• Analyser  :  1/1 octave real-time analysis meeting Class 1: IEC 61260 (option); 1/3 octave real-time analysis meeting Class 1: IEC 61260 (option)
• Accelerometer  :   Tri-axial MEMS based
