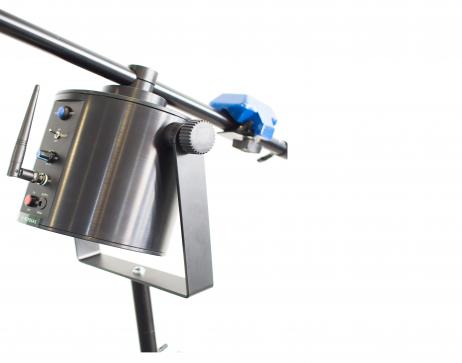

MB-01 microphone boom allows to allocate a microphone with mechanical movement in order to measure sound pressure level.

Boom is composed of an arm that makes the phone turning in space. Rotation frequency, angle and length arm are adjustable.

Mechanical part of rotating boom is designed to allow measurement in particularly silent places.

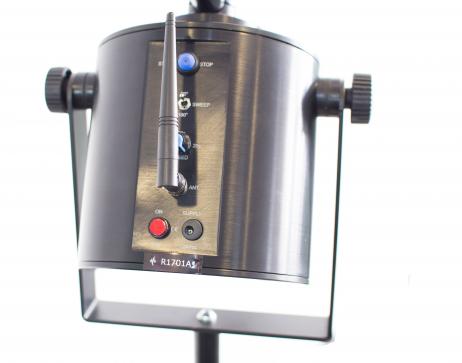

Microphone boom can be activated at distance though remote control.

Sustain brackets of MB-01 rotating boom allow to incline the machine.

STANDARD EQUIPMENT

• Remote control
• Manfrotto Telescopic beam
• Weight balancing
• Microphone clip

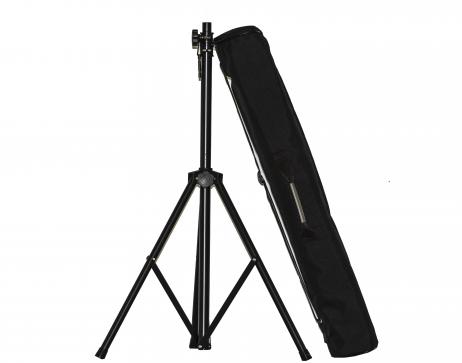

• Tripod + soft bag
• 2 Allen keys for fixing
• Antenna

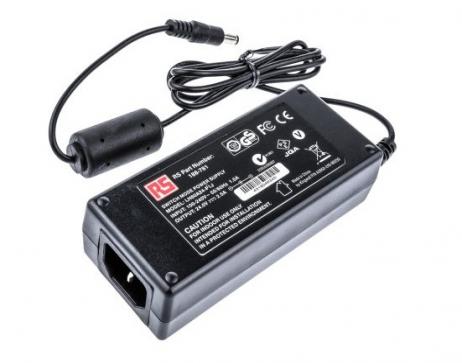

• Electricity supply cable 110V/ 220V at 24V DC

CONFORMITY LAWS

• UNI EN ISO: 140, 16283

NTEK demo video in Italian. Video duration: 13:42

We hope to have one with English subtitle in the future. In the meantime, kindly contact us for a demonstration (Customers in Singapore and Malaysia only).

 Link to NTEK (Manufacturer's site)

• MIC_BOOM_PDF

Technical Specification

• Main unit dimensions:
  • Diameter: 180 mm
  • Height: 180 mm
  • Weight: 3,5 kg
• Mounting: tripod allows inclined traverse plane
• Power: 24V DC 1A
• Rotating boom ray: 600 – 1800 mm
• Rotating angle: +/­- 90° e +/- ­180°
• Remote control: 433MHz
• Antenna: 433 MHz
• 3 scan speeds: minimum, medium, maximum (Return automatically on zero when scan is over)
