Ntek DIR SLIM- directional loudspeaker

DIR SLIM- directional loudspeaker is a great instrument, solid and portable, able to produce a high noise level. For this reason and for his outstanding power and directivity is particularly suitable for sound insulation measurement and reverberation time.

DIR Slim is perfect for AMG Mini systems as an alternative to OMNI dodecahedrons loudspeakers. It can be also used with other external amplifier sources, according with the system acoustic specifications.

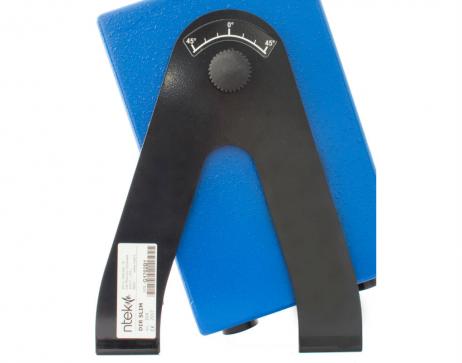

DIR passive façade directional loudspeaker is equipped with a stiff and ergonomic structure, that simplifies transport and protection to impacts. Lower support is equipped with a small base that sustain the loudspeaker on the floor, avoiding overturning.

STANDARD EQUIPMENT

• Standard equipment is supplied with incline adapter.

Optional

• Flight case (rigid)

CONFORMITY LAWS

• UNI EN ISO: 140-5, 16283-3, 3382, 354.
• Conform to CE directives

• DIR_SLIM_pdf

Technical Specification

• Dimensions : 26 x 21 x 32 cm
• Weight : 9 kg
• Maximum power : 350 W
• Max sound Power Level : 122 dB
• Impedance : 4 Ω
• 2 Pin Speakon : IN+1, -1/ OUT +2, -2
