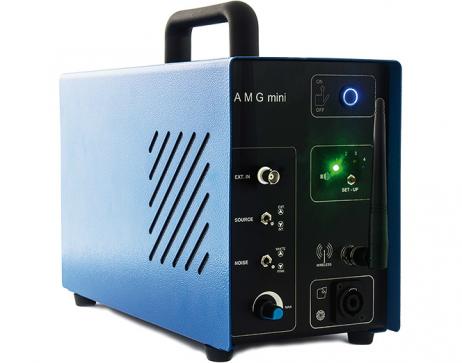

AMG Mini amplifier has been designed to operate at full power with OMNI and DIR series loudspeakers. In a single tool are integrated two power modules with high quality in order to amplify and balance in a correct way the sound energy towards the dodecahedron or the directive loudspeaker. In order to use just DIR loudspeaker i is used one of the two internal power modules to send back to the second channel another directional loudspeaker (optional, as supplement).

Its system can work autonomously for approx. 60 minutes due to its kit of rechargeable Lithium batteries.

AMG Mini amplifier is equipped with a wireless system that allows to activate the connected sources.

STANDARD EQUIPMENT

• Wireless remote control
• Antenna
• Connector BNC/RCA
• Soft cross body bag for transport

Thermic features

• Work range : 0° – 40°C /32° -104° F
• Thermic protection

NTEK illustration video on portability of Dodecahedron speakers and generator. Video duration: 2:09

Kindly contact us for a demonstration (Customers in Singapore and Malaysia).

 Link to NTEK (Manufacturer's site)

• AMG-MINI_pdf

Technical Specification

• Dimensions : 140 x 200 x 330 mm
• Weight : 3 kg – with batteries kit: 5 kg
• Frequency response : 40 Hz- 10 Hz
• Batteries capacity : 1 hour full power
• Noise generator : White/ pink or through BNC/RCA connector with alternative external sources for particular customer needs.
• Channels number : 2 out
• Maximum power for channel 4 Ω : 350 W
• SNR (Signal to Noise Ratio) : > 113 dBA
• Total Harmonic Distortion THD + N : < o.o5% from 0.1 W at full power (usually < 0.01%)
• Intermodulation distortion DIM100 : <0.02% from 0.1 W at full power (usually <0.005%)
• Power factor : cosφ >0.85 – 4 Ω at full power
• Short circuit protection

DSP (DIGITAL SYSTEM PROCESSOR)

• Architecture : 1702
• Equalizer : whole parametric filters per channel

Thermic features

• Work range : 0° – 40°C /32° -104° F
• Thermic protection
