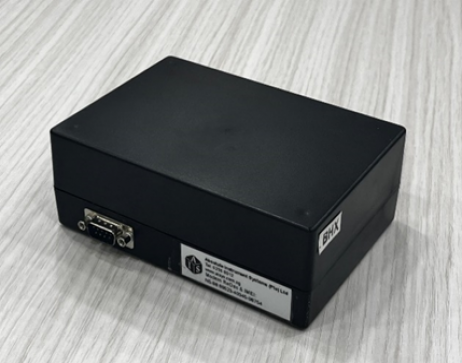

NT326 Modbus Interface controller
NT326 Modbus Interface controller
NT326 is used to convert serial RS232 interface equipment to a Modbus RTU interface.
With NT326, you will be able to integrate RS232 based equipment to Modbus RTU control system easily.
General Specifications:
| Protocol | Modbus RTU |
| Max Modbus Device | 31 |
| Baud Rate | 9600 |
| Modbus Commands |
Read Holding Register (Single) Read Input Register (Single / Multiple) Write Single Register (Single) |
| Interface | RS232 x 1, RS485 x 1 |
Electrical Specifications
| Power Input | +9VDC to +24VDC / 250mA Max |
| Reverse Voltage Protection | Yes |
| Short Circuit Protection | Yes |
Misc Specifications
| Dimensions | 150 x 113 x 55 (mm) |
| Operating Temperature | 0 to 55 Degree C |
| Storage Temperature | 0 to 70 Degree C |
