The Affordable Six Channel Solution

Handheld Operation

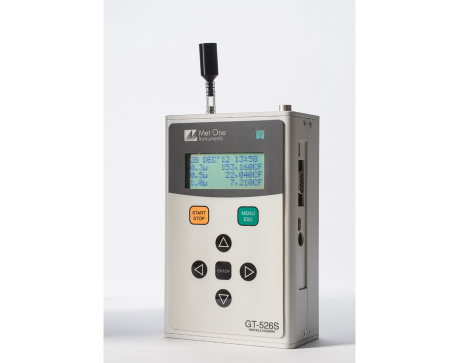

The GT-526S is a full-featured, battery-operated, portable particle counter that provides the functionality of a bench unit with the convenience of a handheld.

User Selectable Sizes

Six programmable particle sizes. Operator can set each size from 0.3 to 10 microns.

Count Alarm Limits

Two programmable count alarm limits. Alarms are indicated by an audible beep, displayed message and an alarm flag in the data file.

Data Storage

Store up to 8,000 sample events. Sample history events can be viewed, printed on the optional printer and download to a computer using Comet software or simple ASCII terminal commands.

Battery Powered

24 hours of typical (intermittent) operation and 10 hours of continuous operation. Recharge time is only 2.5 hours.

Temperature / Relative Humidity Option

A plug-and-play option that immediately adds ambient temperature and relative humidity capabilities to displayed and logged data.

 Applications:

• Controlled Environments
• Indoor Air Quality
• Process Control
• HVAC Applications
• Filter Testing
• Compliance Testing
• Emission Sourcing
• Remote Sampling

• Met One GT-526S Six Channel Particle Counter datasheet

Specifications

MEASUREMENT METHOD :   Scattered laser light

PERFORMANCE

• Particle Size Range  :  0.3μm - 10μm, 6 channels
• Calibrated Sizes  :  0.3 μm, 0.5μm, 1.0μm, 2.0μm 5.0μm and 10μm
• User Size  :  Settings 0.1μm steps from 0.3μm - 2.0μm , 0.5μm steps from 2.0μm - 10μm
• Concentration Range  :  0 – 3,000,000 particles per cubic foot (105,900 particle/L)
• Accuracy  :  ± 10% to calibration aerosol
• Flow Rate  :  0.1 cfm (2.83 lpm)
• Data Storage  :  8,000 samples
• Sample Time Adjustable  :  1 to 999 seconds
• Hold Time Adjustable  :   0 to 999 seconds

ELECTRICAL

• Light Source  :  Laser Diode, 90mW, 780 nm
• Battery  :  7.4V 2,200 mAH Li-ion battery pack.10 hours continuous operation
• Battery Charge  Time  :  Fully changed in 2.5 hours
• AC Adapter/Charger  :  Li-ion battery charger, 100 – 240 VAC, 50/60Hz
• Communications  :  USB, RS-232 or RS-485
• Certifications  :  Meets or exceeds CE, ISO 21501-4

INTERFACE

• Display  :  16-character × 4–line LCD
• Keyboard  :  7-key membrane type

PHYSICAL

• Dimension  :  Height 6.25” (15.9 cm), Width 4.00” (10.2 cm), Depth 2.12” (5.4 cm)
• Weight  :  2.00 lbs (0.91 kg)

ENVIRONMENTAL

• Operating Temperature  :  0° to +50°C
• Storage Temperature  :  -20° to +60°C

ACCESSORIES   :  Supplied Operation Manual, Serial Cable,USB Cable, Comet,Software, AC Adapter / Battery Charger, Iso-kinetic Sample Probe,  Carrying Case, Zero Particulate Filter

Optional

• RH & Temperature Probe
• Flow Meter
• Portable Printer
• Particle View Software
