The Minimate Pro6™ Vibration and overpressure monitor offer advanced monitoring technology with unequalled durability.

• Six recording channels with your choice of two triaxial geophones (ISEE or DIN) or one triaxial geophone and an ISEE microphone.
• Dedicated function keys and intuitive menu enable quick and easy setup.
• Sample rates from 512 to 65 S/s per channel, independent of record times.
• Continuous monitoring means zero dead time between events, even while the unit is processing.

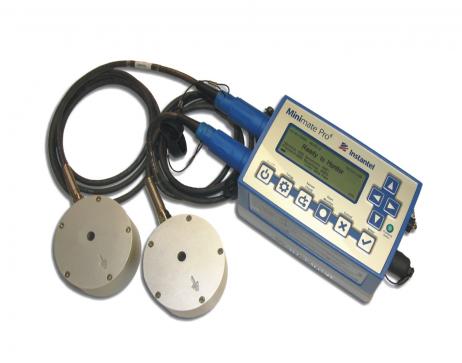

• Instantel Histogram Combo™ mode allows capturing thousands of full waveform records while simultaneously recording in histogram mode. Minimate Pro6 seismograph with Geophone & Microphone
• Auto Call Home™ feature automates remote monitoring applications.
• Non-volatile memory with standard 7100-plus event storage capacity.
• Records full waveform events over two hours long.
• Fully compliant with the International Society of Explosives Engineers "Performance Specifications for Blasting Seismographs."
• Ethernet® interface for high speed communications and data transfer. (Auto Call Home™ is not supported over the Ethernet)

Application

• 6-Channel data acquisition
• Blast-monitoring for compliance
• Pile driving
• Construction activity
• Demolition activity
• Heavy transportation monitoring
• Bridge monitoring
• Structural analysis
• Remote monitoring

• Instantel_Minimate_Pro6™_vibration_and_overpressure_monitor_datasheet
• Instantel_Minimte_Pro6_Key_Features_brochure

Features

• Ethernet® interface when connected directly to the unit (Auto Call Home is not supported over the Ethernet)
• Auto Call Home™ remote monitoring function
• Cast aluminium case
• Water resistant to IPC67 – submerse to 30 cm (1 ft.) for 24 hours
• Compliant to CE Class B - Meets or exceeds RF and EMI requirements
• Sensor Check for automatic error checking

Specification

• 6 Channels  :  Microphone and Triaxial Geophone or two Triaxial Geophones
• Memory  :  7,100 plus events
• Record Modes  :  Manual, Continuous, Histogram, Instantel Histogram Combo, and VDV –Vibration Dose Value (optional)
• Sample Rates  :  512 to 65,536 S/s per channel
• Dimensions  :  254 X 117 X 108 mm (10.0 X 4.6 X 4.25 in)
• Weight  :  2.27 kg (5 lbs)
• User Interface  :  10 domed tactile keys
