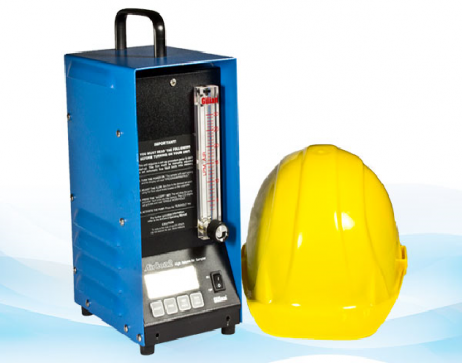

Gilian AirCon-2 Area Air Sampling Pump (2 - 30 LPM)

A powerful 2-30 LPM constant flow sampler offering full portability and programmability

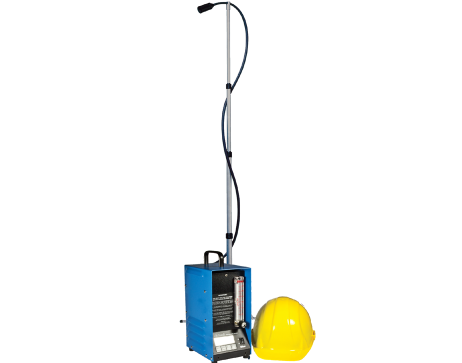

The AirCon-2 sampler is a high volume unit with an extended flow range, designed for collecting particulate in a given plant area. It is ideal for asbestos background and clearance sampling following NIOSH, OSHA or EPA methodology and for ambient dust monitoring. The AirCon-2 System is available in a programmable version that operates off either AC or battery power. It comes with an adjustable tripod mast and connecting hose to hold the filter cassette at the proper height and isolate the filter from the vibration of the unit. Cassette and filter media must be ordered separately.

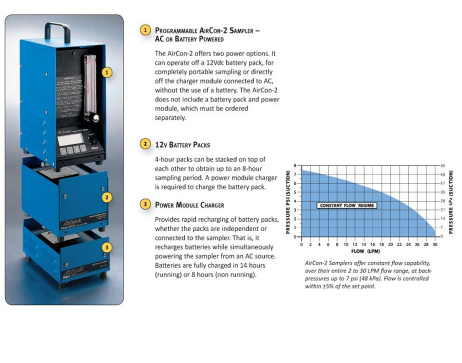

Programmable AirCon-2 Sampler

The touchpad and LCD display on the front of this DC powered unit allows the user to program as many as three custom timing routines for unattended sampling. The program feature can be used to control starts and stops to the sampling run, as well as delays, holds and number of cycles. Programmable units include an instant fault function that terminates the sampling run and locks in the time when the unit is operated out of its performance envelope. A flashing word "FAULT"appears on the display to alert the operator. Back-pressure load on the unit can be checked through the LCD display at any time by simply pressing a button on the front control panel.

• Gilian AirCon-2 Area Sampling Pump Datasheet
• AirCon-2_Operation_Manual

PERFORMANCE

• Flow Range  :  2-30 LPM
• Constant Flow  :  2-30 LPM @ pressures up to 7 psi
• Run Time  :  8 hour minimum

ENVIRONMENTAL
Temperature Ranges

• Operating  :  -4°F to 113°F (-20°C to 45°C)
• Storage  :  -40°F to 113°F (-40°C to 45°C)

Humidity Range

•  0-95 %RH, non-condensing

GENERAL

• Display  :  Electronic Pressure Display,Full-Function Timing Program, Instant-Fault Function,Programmable Memory up to 3 custom programs)
• Keypad  :  ACCEPT, PROG, TIME/PRESS,RUN/HOLD
• Controls  :  Flow Adjust
• Indicators  :  LCD Display, ExternalRotameter,Instant Fault, Low Battery
• Dimensions  :  4.3W x 0.3H x 7.5D inches (10.8W x 26.0H x 19.1D cm)
• Weight  :  Main Unit :  12 lbs (5.4 kg),4-Hour Battery Pack :  11.5 lbs (5.2kg)
• Power Module  :  2 lbs (0.9 kg)

ELECTRICAL

• Main Unit Input  :  12 VDC @ 3.4 A
• Power Module Input  :  115-230 VAC @ 800/600 mA,50-63 Hz
• Power Module Output  :  14 VDC @ 4.6 A (51 watts)
• Battery Pack Output  :  12 VDC, 13 AH
• Fuses  :  250 VAC, 3 amp, fast acting,250 VAC, 1.6 amp, fast acting
• Charging Time  :  14 hours (operational),8 hours (non-operational)
