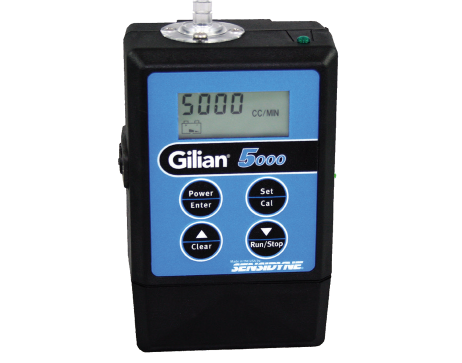

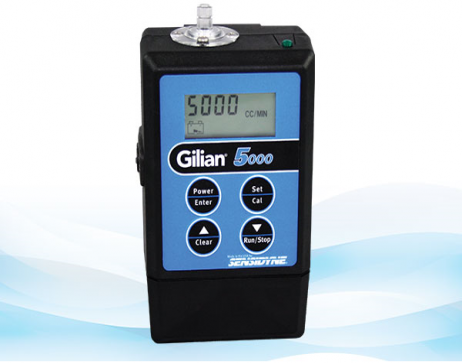

Gilian 5000 Personal Air Sampling Pump (20 - 5,000 cc/min)

The Gilian 5000 is a high-performing personal air sampling pump leading the industry in back-pressure performance, reliability and ease-of-use. The pump offer flow rates up to 5000 cc/min, and thanks to several advanced features, the pump overcome the main causes of sampling errors, saving you time and money. The air flow display holds calibration for 30 days, even with atmospheric changes. The back-pressure capabilities of the Gilian 5000 are the highest in the industry for any personal sampling pump.

• Up to 5 LPM
• Highest back-pressure capability
• Programmable
• Live flow display
• NiMH battery
• EN1232 - Type P compliant

• Gilian 5000 DataSheet
• Gilian 5000 Comparison Flyer
• Gilian 5000 Quick Start Manual

Specification

• Flow Range : 20 – 5000 cc/min (Total*)
                          800 – 5000 cc/min (High Flow)
                          20 – 800 cc/min (Low Flow*)

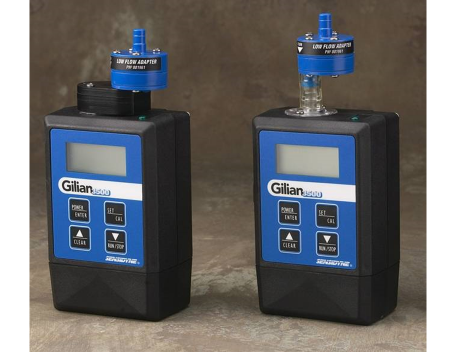

                          *with low flow constant pressure adapter
• Constant Flow Control : +/-5% of set flow at 1000 – 5000 cc/min
• Flow Compensation : 1000 cc/min up to 70" H20 back-pressure (17.4 kPa)
                                        2000 cc/min up to 60" H20 back-pressure (15.0 kPa)
                                        3000 cc/min up to 50" H20 back-pressure (12.4 kPa)
                                        4000 cc/min up to 30" H20 back-pressure (7.5 kPa)
                                        5000 cc/min up to 20" H20 back-pressure (5.0 kPa)
• Run Time : 8 hour minimum
• Flow Fault : +/— 5% set flow, fault icon appears; if fault exceeds
                         30 seconds pump shuts down. Pump will attempt restart every 3 minutes for up to 30 minutes.
• Temperature Range : Operating 32°F to 113°F (0°C to 45°C)
                                      Storage -4°F to 113°F (-20°C to 45°C)
                                      Charging 41°F to 104°F (5°C to 40°C)
• Humidity Range : Operating 5-85 %RH, non-condensing
                                 Storage 5-98 %RH, non-condensing
• Display : Flow Rate, Total Sample Time,Total Volume Sampled
• Indicators : Green LED (“Normal Operation”)
• Icons (LCD) : Battery Indicator, Hold, Fault, Set, Prog
• Dimensions  : 3.2W x 5.4H x 2.3D inches8.2W x 13.7H x 5.8D cm
• Weight : 20.5 oz. (580 g)
• Battery Pack : Removable, RechargeableNickel-Metal-Hydride
• Battery Level Indicator : Icon displays Full, Mid, & Low levels
• Interface Connectors : Charging Jack
• Charging Time : Under 4 hour
• Approvals Performance : EN 1232 (Type P)
                                             Intrinsic Safety – US/Canada NRTL (FM)
                                            - Class I, Division I, Groups A, B, C & D
                                            - Class II, Groups E, F & G
                                            - Class III, T4
                                            CE: Ex II 1 G, Ex ia IIC T4
