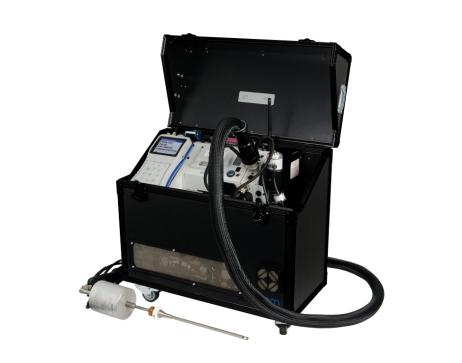

ecom-J2KNpro TECH Flue Gas Analyser

EXTREMELY technological. Fully Equipped. Mobile.

Emission analysis in challenging environments
– extremely robust but also mobile
– the perfect add-on to a stationary system
Free combination of the measurement methods, for each application
– cost-effective electrochemical sensors for high measurement ranges
– physical sensors for maintenance-free and wearless measurements, even if overloaded
– compact design: PAS modul, CLD with converter, NDIR
Operation with far-reaching radio remote control
– comfortable control and stable monitoring from the distance
Easy transportation in stable aluminium-framed case
– optional trolley for easied mobility
– additional case for heated sampling system storage
Short controls or continuous measurements
– ready to use for short and long term measurements
– high-quality sensors, high-performans sample gas conditioning, reliable filtering, wireless remote control with high coverage and various data output possibilities:
EVERYTHING integrated in one and the same system

For free combinable configuration of required gas sensors (O₂ sensor part of the basic delivery scope)
Designed for quasi-stationary measurements with programmable measurement intervals
Integral thermal quick-printer
Internal heating/ventilation cooling depending on ambient conditions (0-40°C ambient temperature)
Comprehensive options for data processing (i. a. via WiFi data transfer)
Stainless steel gas cooler for perfect, dry gas preparation
Electronic condense monitoring as well as automatic condense evacuation
Status display for basic functions, settings and warning messages
Complete in ultra light-weight, robust aluminium housing
T-Room probe/T-Room stick (according to restest or type) in spacious aluminum-framed transport case including trolley
Incl. all necessary filters, printer Paper etc. - all filters and consumables exchangeable by user
Free downloadable PC Software

Radio Remote Controller

(included in every standard delivery scope)

Large coverage to bridge distances between measurement point (flue gas opening) and adjustment point (e. g. burner, control panel, etc.)
Incl. thermocouple inlet, mini USB connection (data transfer to laptop/PC), SD card slot
Backlit keypad as well as high-value colour TFT display
Display, printout and storage of measurement data
Complete instrument operation command (a. o. manual start and end of measurements, data processing, …)
Stable data processing via radio (highest possible avoidance of interference, bridging of metal or concrete barriers , automatic connection, no abrupt connection interruption while keeping all measurement data as well as automatic re-connection of radio communication)

Dimensions

(L x H x D): 500 x 650 x 250 mm (measurement instrument and heated system on trolley)

Weight

pruefsiegel_sw

Approved acc. to EN 50379-2 and 1. BImSchV
