Absolute Noise Barrier

Absolute Noise Barrier

Noise Barriers are designed to solve noise control applications where both sound absorption and sound blocking must be increased. It helps to prevent noise propagation to the neighbourhood and absorb the noise in work area.

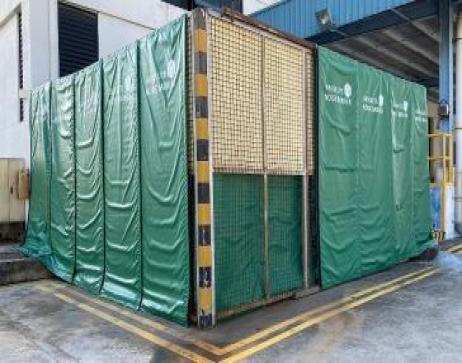

Noise Barriers in Singapore have become commonly used in different sectors such as Construction and Highways. They are also installed in Industrial facilities, such as Factories or Manufacturing plants.

Noise Barriers are installed to protect public health, reduce noise pollution and help companies to contribute to sustainability. It also help the contractors comply with NEA’s Boundary Noise Limits by reducing noise to an acceptable level, avoiding disputes with nearby residents and lawsuit or heavy fine (up to S$40 000) for contractors who fail to comply with NEA’s noise requirements.

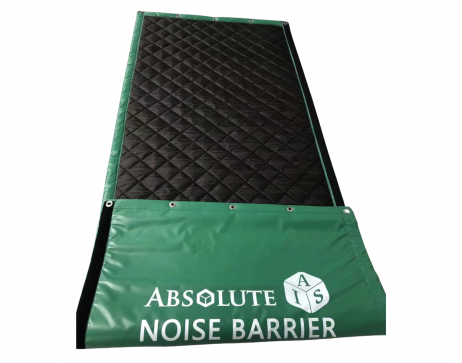

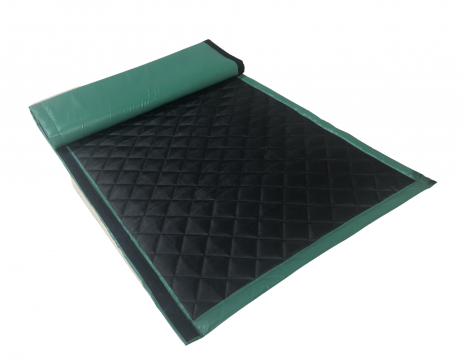

Model: ANB-L-26
Size: (W) 1200mm x (L) 3000mm
- B1 FR Green Colour PVC (Front Side)
- 25mm Thickness Fiber Glass Wool (48K) with Aluminium Foil
- Cover with FR Black Fabric (Back Side)
- 5cm Width Velco for Both Left & Right Side
- Grommet for Both Top & Bottom Side (5pcs per Side),
  Grommet Size OD:28mm & ID: 20mm

Acoustical Performance
Sound Absorption Test Report
Report: SAA = 0.54
NRC = 0.57

Sound Transmission Test Report
Report: According to E413, Sound Transmission Class of this specimen is 26dB

*Tested by TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch


Do contact us now for more information - ☎ (65) 6296 8012 | ✉ sales@aisys.com.sg

  • Sound Block
  • Sound Absorption
  • Waterproof
  • Fire Rating Class A (ATSM E84-19b)
  • UV resistance
  • Easy installation
